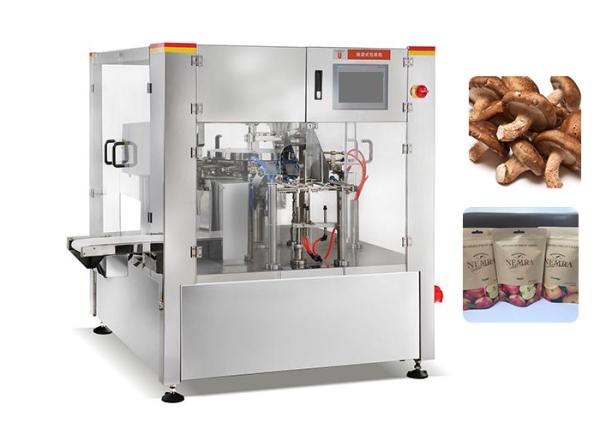

8 Rotary Work Station Automatic Rotary Premade Pouch (Vacuum) Packing machine
Main Function& Features:
1. Replacing traditional manual packaging, the rotary bag packaging machine has achieved packaging automation, improved production efficiency and significantly reduced the product cost. The whole equipment is operated by one person only, greatly saving the labor cost.
2. Equipped with auto-monitoring device, the machine can check the air pressure, temperature controller breakdown, opening status of the pouches to determine if the machine is in normal condition. It can also control the code printer, filling and hot-sealing device to avoid wasting of bags and products.
3. Fully-automated rotary vacuum poucher is able to meet a variety of packaging needs and cab be used with other equipment.
4. Fully-automated rotary vacuum poucher consists of two separate rotary parts (filling system and vacuum system) with filling system in intermittent operation and vacuum system in continuous operation.
5. Quick change of the pouches. The width of the bagging can be adjusted automatically at one time.
6. The machine meets the hygienic standards of food processing machinery, with product contact parts in SSUS304 or other material to conform with food hygiene and safety.
7. Convenient for cleaning. The vacuum chamber can be cleaned.
8. With pre-fabricated pouches, packaging material waste is low. Patterns on pouches are complete and good-looking and sealing is of good quality, enhancing the product level. When there is no product filling, there is no sealing and the pouches can be re-used.
9. Utilizing advanced PLC and POD electrical control system, the machine is able to adjust the angle and time of the pneumatic parts and human-machine interface is friendly with easy operation.
Specifications:
| Model | TY-RP200 | TY-RVP200 |
| Packaging Speed | 30~50 bpm | 50 bpm |
| Bag Size | 100-160(L)*100-230(W)mm | 100-180(L)*120(W)mm |
| Packaging Weight | 1-1.5kg | 1-2kg |
| Sealing Type | reticulate pattern sealing; double zipper sealing | reticulate pattern sealing; double zipper sealing |
| Powder Supply | 3 phase 380V 50HZ, 3KW | 3 phase 380V 50HZ, 5KW |
| Air Consumption | 5-8kgf/cm²; 0.4m³/min | 0.6m³/min |
| Bag Type | flat bag, stand-up bag, zipper bag | flat bag, stand-up bag, zipper bag, paper bag, etc. |
| Net Weight | 1,600kg | 1,800kg |
| Machine Dimension | 1,550(L)*1,350(W)*1,400(H)mm | 1,480(L)*1,320(W)*1,510(H)mm |
